Description

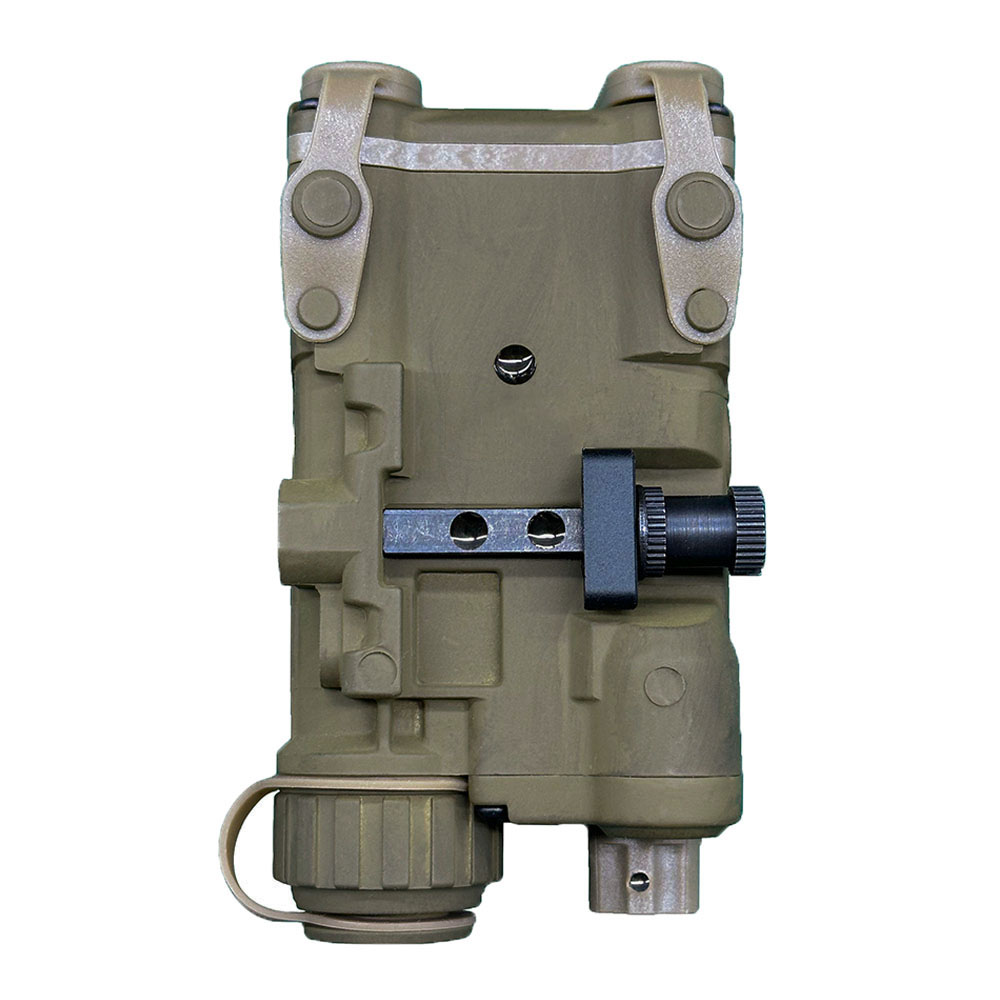

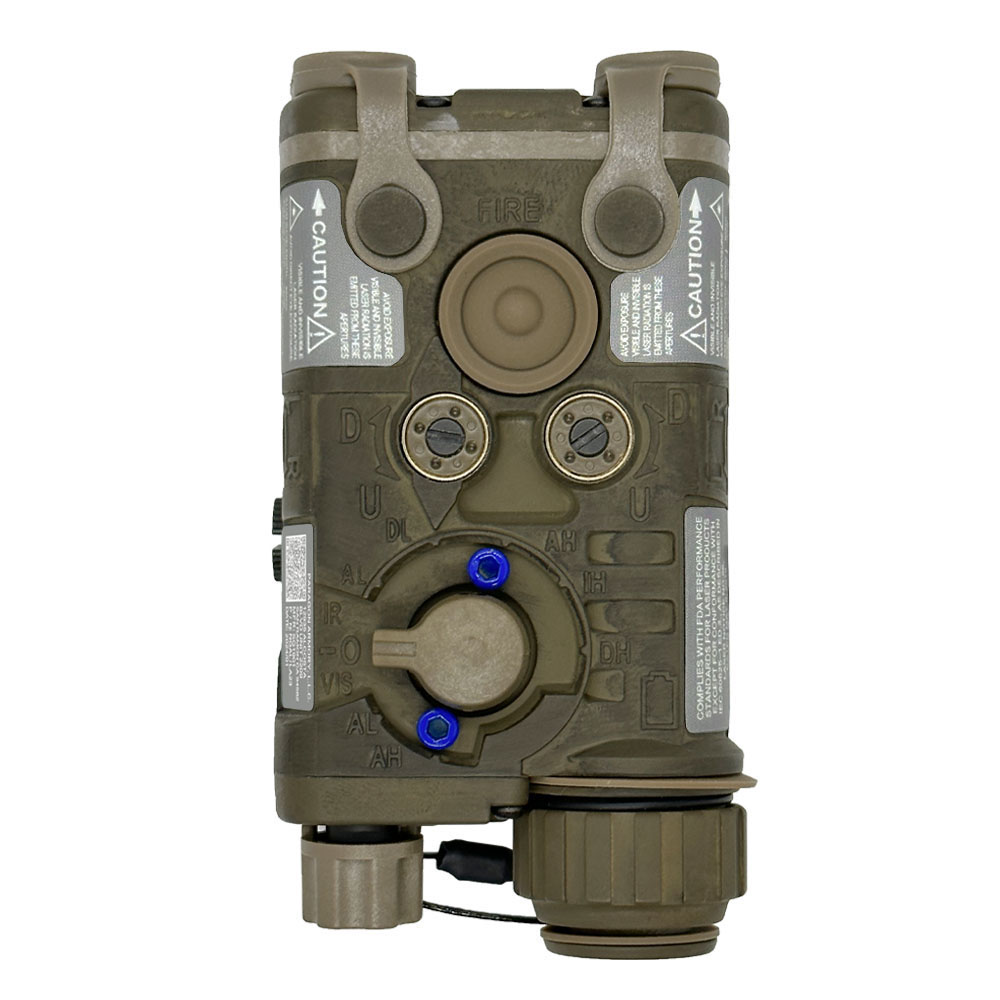

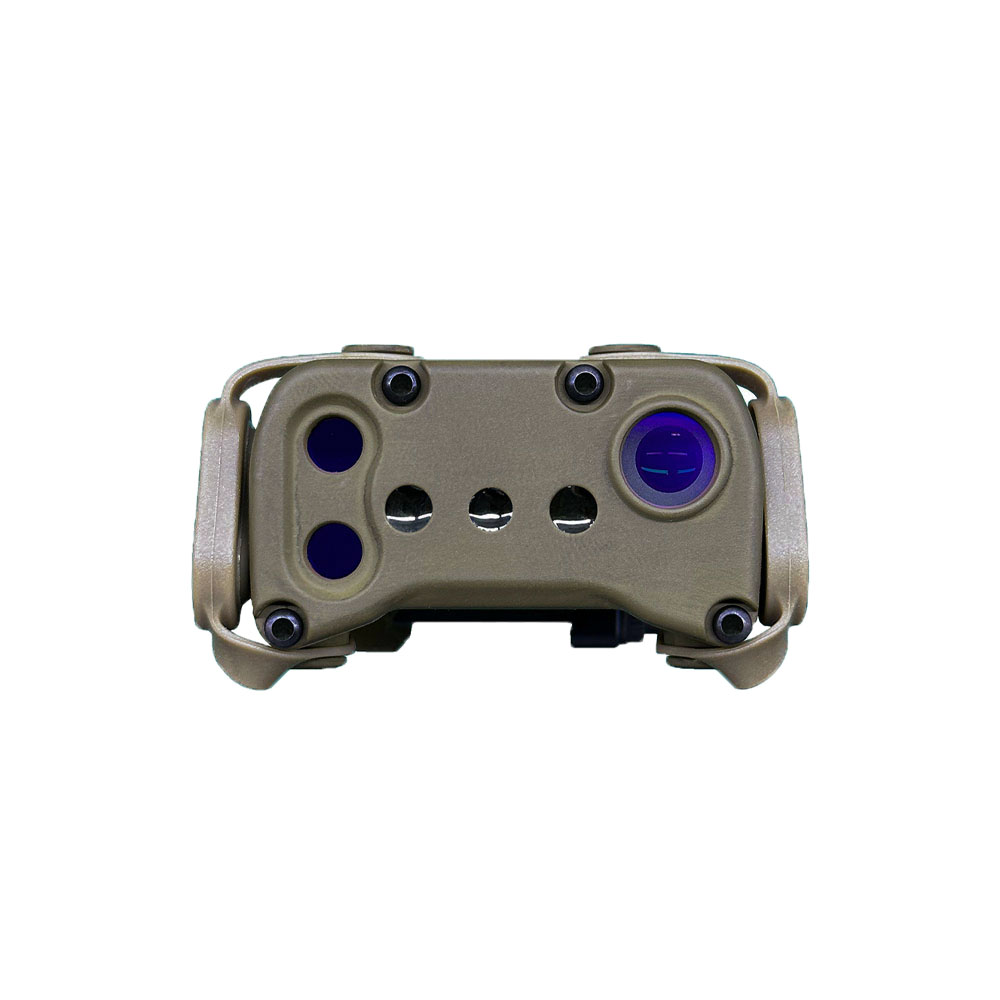

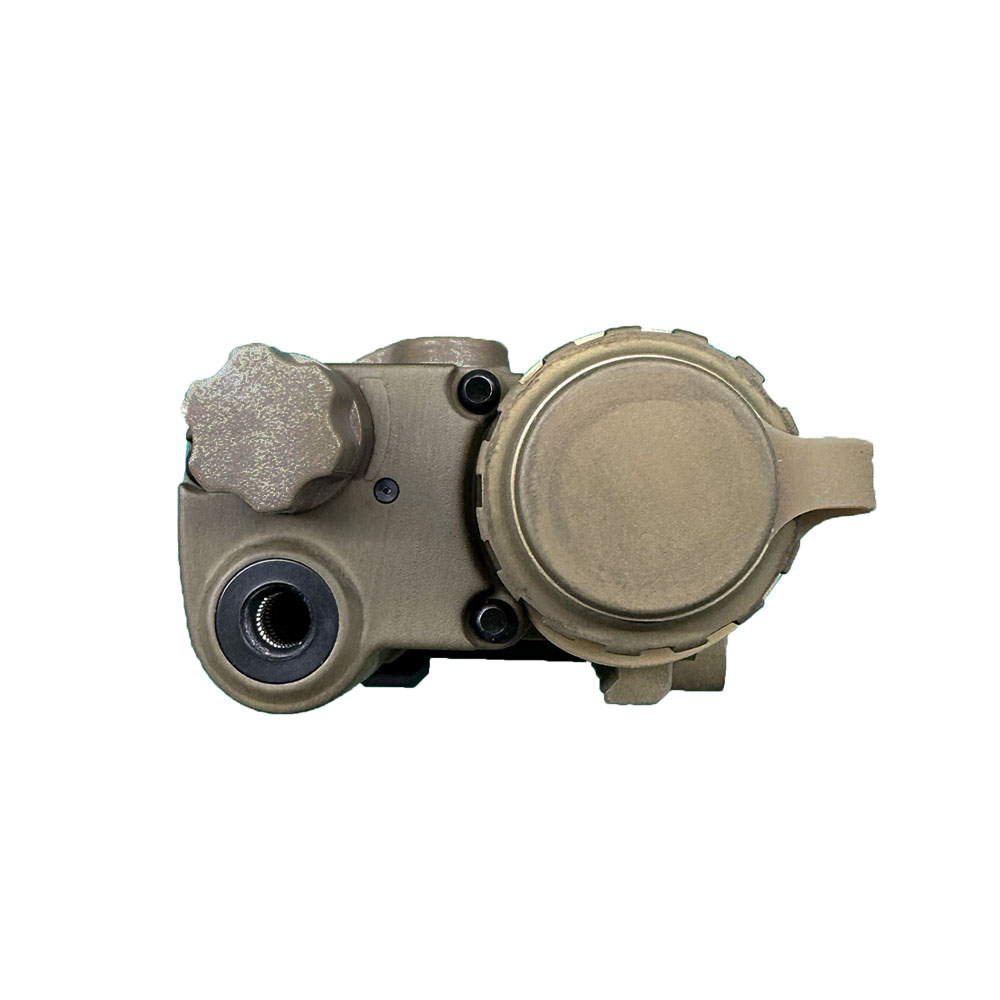

The NGAL is a rugged, ultra-compact aiming laser system designed for tactical training, airsoft, and milsim game use. It features co-aligned visible and IR lasers, a focusable VCSEL IR illuminator, and an included ND filter and diffuser for reduced-output training applications.
NGAL Illuminator Key Features
- Fits MIL-STD-1913 Picatinny rails
- CNC-machined 6063 aluminum housing
- Zeroable aiming laser
- Co-aligned visible and IR lasers, with less than 10 cm of offset at 30 meters
- Focusable VCSEL IR illuminator with diffuser cover
- 288° rotating focus ring, adjustable from spot to flood
- ND filter and diffuser included for reduced-output training use
- Reinforced, epoxy-sealed top activation button
- Rain- and splash-resistant design
- The Vis-Override function requires the optional Vis-Override Pressure Switch, sold separately.
- IR illuminator max flood angle: 8.9°
At 30 meters, maximum flood beam diameter is approximately Ø4.6 meters.
Want to check beam size at other distances? Try our Beam Calculator. - Ships from Hong Kong
Mode Function:
- VIS AL= Visible Laser (Double-click for constant on)
- IR AL= Flashlight (Double-click: constant on. Single-click: momentary)
- IR AH= Visible Laser + Flashlight (Double-click for constant on)
- OFF = OFF
***Due to differences in monitor settings and lighting conditions, actual color may vary slightly from the images shown.***
Package Includes
- 1 x NGAL laser combo
- 1 x Crane Remote Switch
- 1 x Sticker set
Remark:
- Battery not included due to air shipping restrictions.
Additional information
| Weight | 0.4 kg |
|---|---|
| Dimensions | 18 × 12 × 6 cm |
| LASER COLOR | Green Laser + IR Laser, Red Laser + IR Laser, Green Laser + Infrared LED illumination, Red Laser + Infrared LED illumination |
